F80s ,the new, modern and compact awning for roof installation
An awning with an extremely small cross-section to integrate it even better in the contour of the vehicle.
The technical solutions which have been implemented mean a more compact awning protrusion. The introduced innovations, like dual prearrangement as standard equipment for LED lighting on the lead bar and on the case, in addition to three guides on the lead bar, make F80s the go-to solution for all roof-mounted installations.

[1] Dual LED Predefined position in lead bar + case: housings for the addition of the optional LED Strip Awning full-length lighting kit (5m adhesive strip) are made inside the case and the lead bar

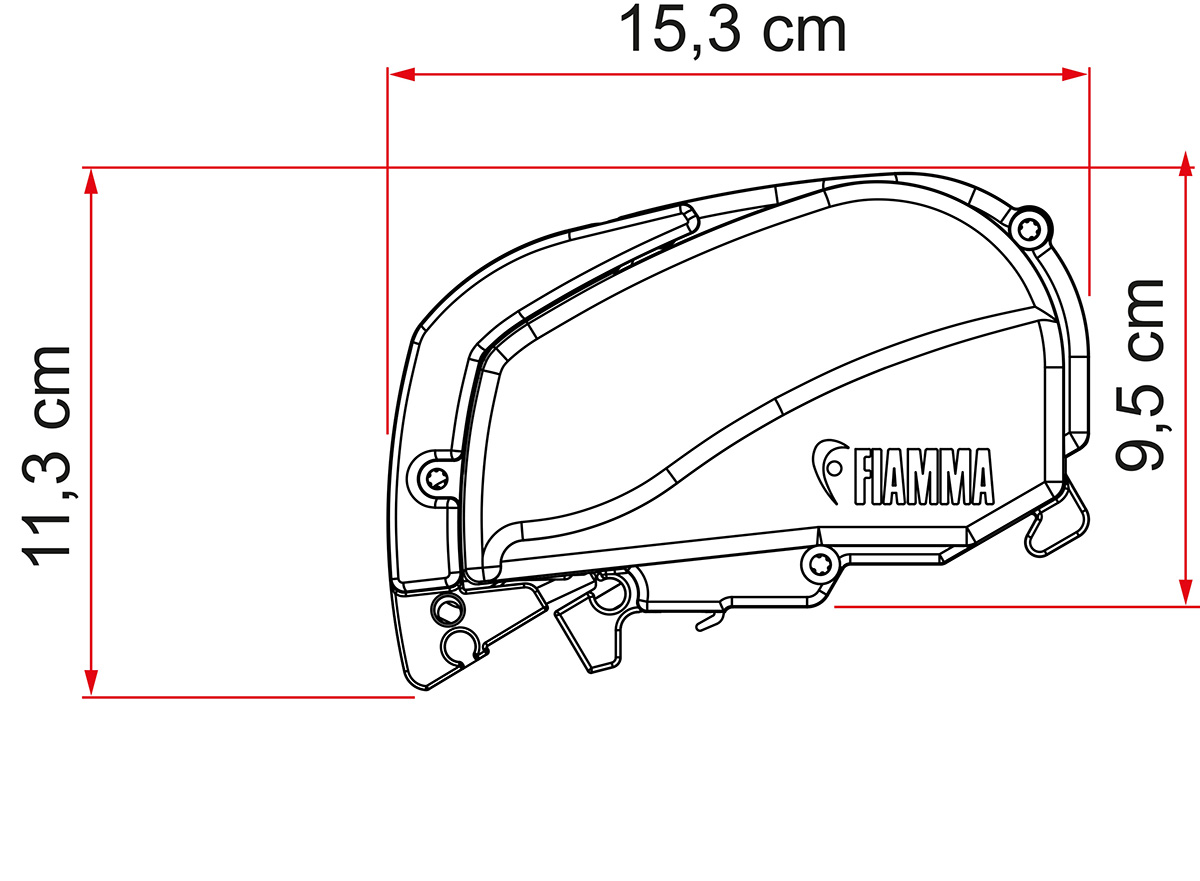

[2] Compact section: case and lead bar are more compact but as strong as ever. The awning has improved aerodynamic performance as a result of having a 20% slimmer cross-section than F65s model

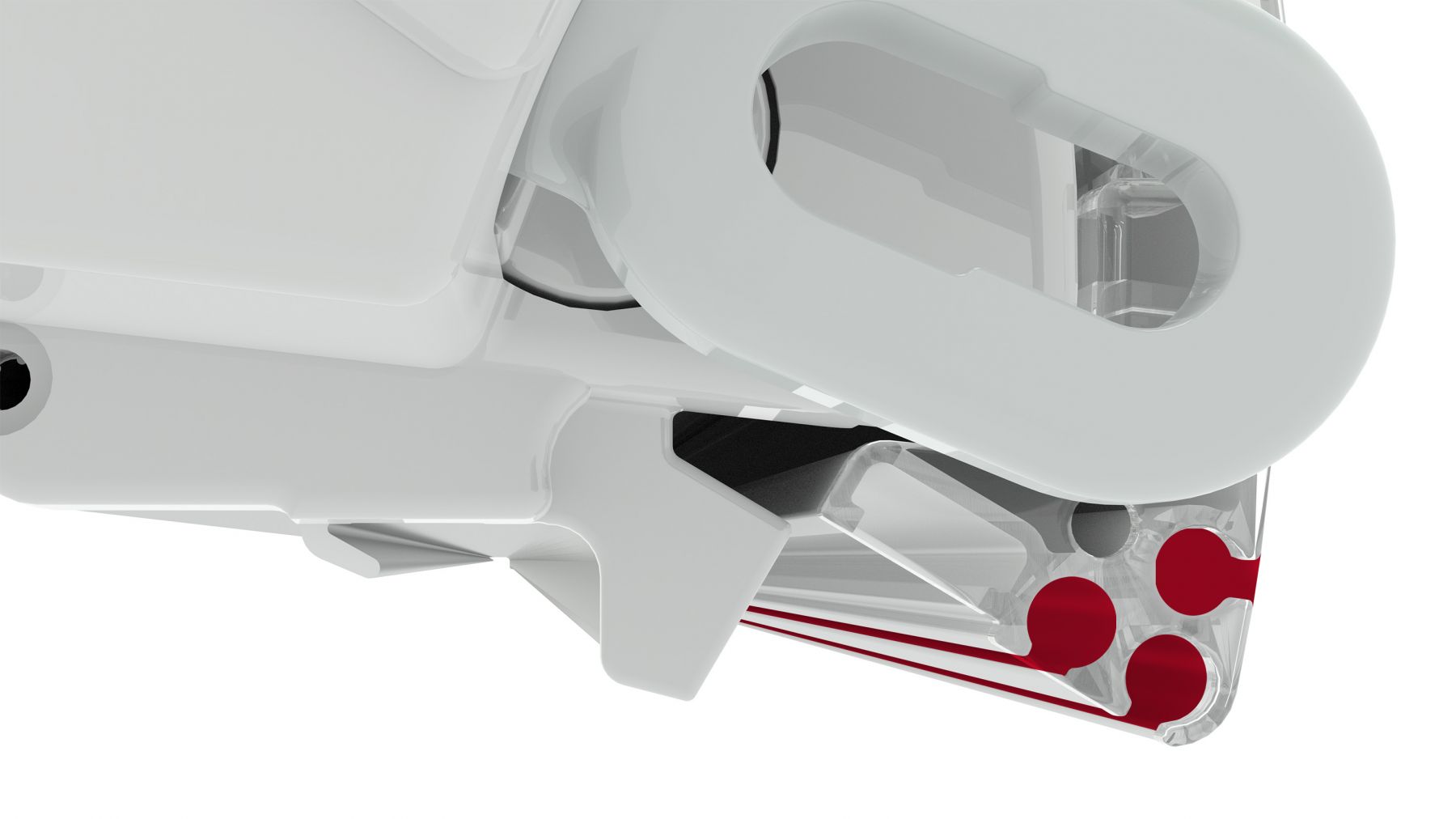

[3] Triple Guide: three guides on the lead bar (highlighted in red in the detail) for fitting two front panels and other accessories
[4] Secure Lock: the legs can be fixed to the ground or to the wall and the height of the lead bar can be adjusted with a telescopic safe and practical system
[5] Aluminium end caps: new design for the aluminium end caps for maximum strength
[6] Extra-Strong Arms: wider, reinforced and articulated arms with double steel cable for optimal canopy tensioning
Rafter: central tension rafter in aluminium delivered as standard for awnings from 400cm long
Installation brackets: the awning is provided without brackets, simply choose the most suitable one for your vehicle. More than 40 different kits to choose from
Motor Kit: the awning can be fitted with a double version of the Motor Kit, the Motor Kit Compact (with wall control panel) or the "Plus" version (wall control + remote control).
Selection guide
Vehicle Perfect for motorhomes, caravans and van conversions.
Operation Winch opening and closing. Operation by handle. Electric motor optional.
Position Designed for roof installation.
Adapter optional available.
Awning enclosure Optional Privacy Ultra-Light, Privacy Room, front and side panels Blocker & Side.

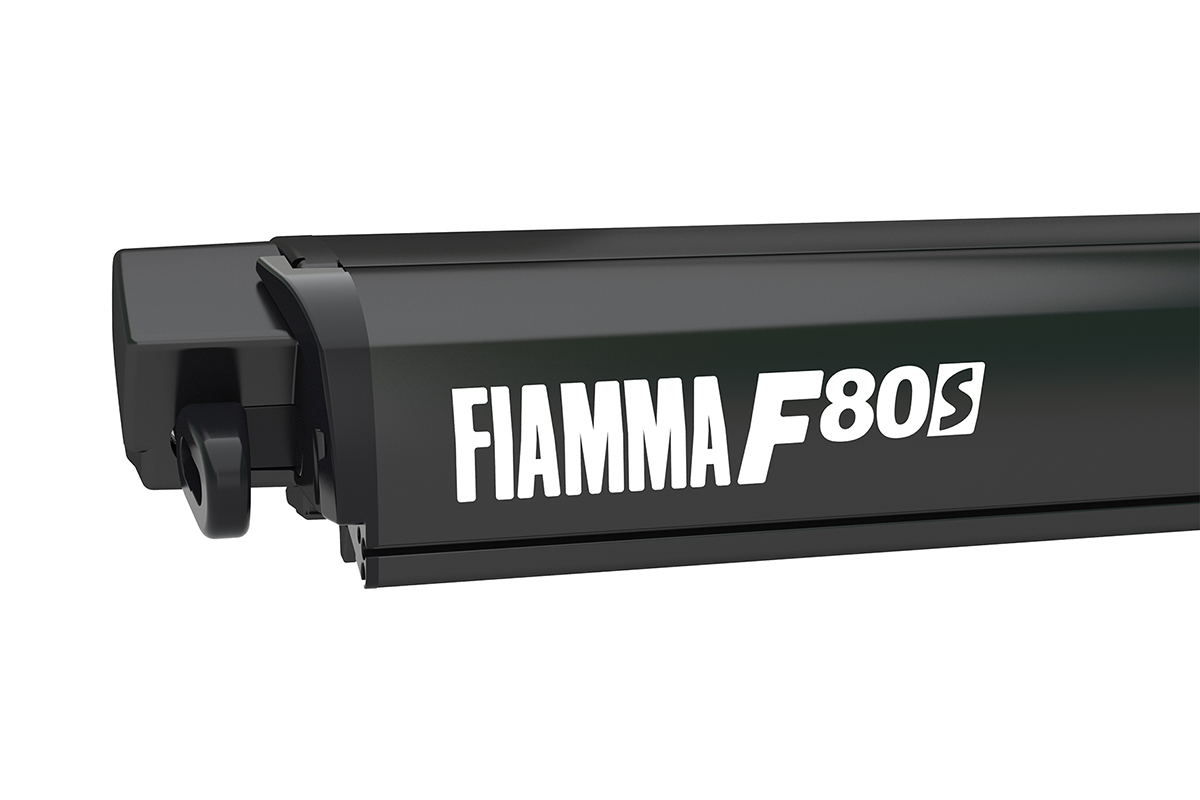

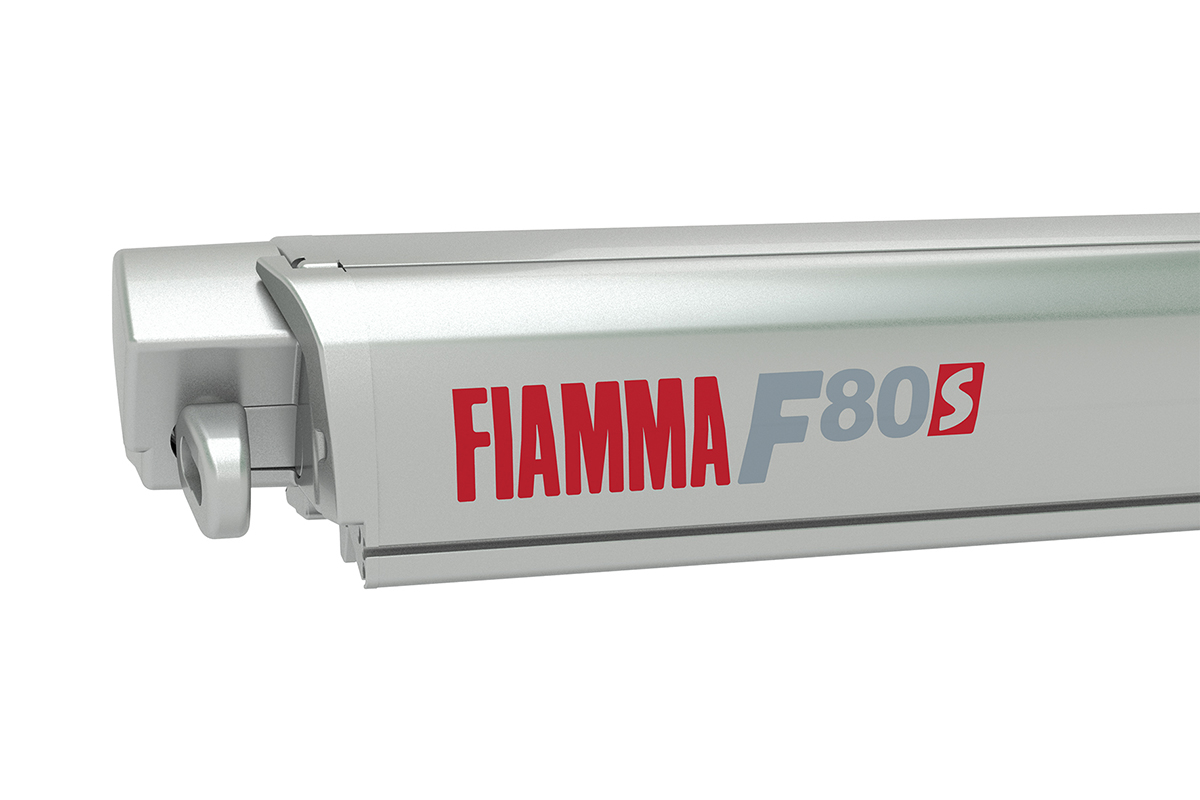

Colours & Materials Case: in extra strong extruded aluminium. Very light yet highly resistant external coating in either Polar White, Titanium or Deep Black. Cool and cheerful vinyl canopy. UV resistant, waterproof and washable, with bright colours on both sides.
Colours: R=Royal Grey, Q=Royal Blue
F80s on Fiat Ducato

Thanks to the brackets designed for installation on specific points,
it is the ideal awning for Fiat Ducato, Citroën Jumper and Peugeot Boxer Van conversions




Ducato - Jumper - Boxer Vehicle height Vehicle lenght Awning * Adapter
Before 06-2006 H2 (2524 mm) L2 (5099 mm) F80s 290 98655-373
or
98655-693
Before 06-2006 H2 (2524 mm) L3 (5599 mm) F80s 340 98655-373
or
98655-693
After 06-2006 H2 (2524 mm) L2 (5416 mm) F80s 320 98655-745
After 06-2006 H2 (2524 mm) L3 (5998 mm) F80s 370 98655-745
After 06-2006 H2 (2524 mm) L4 (6363 mm) F80s 400 98655-904
After 06-2006 H3 (2764 mm) L2 (5416 mm) F80s 320 98655-656
After 06-2006 H3 (2764 mm) L3 (5998 mm) F80s 370 98655-656
After 06-2006 H3 (2764 mm) L4 (6363 mm) F80s 400 98655-656

* Observe the recommended lengths as they are linked to the points provided by the manufacturer

Articles
Item Description Price
07830A01R F80s 290 - Polar White (9'6") - 6'6" extension/55 lbs. $1,252.00
07830B01R F80s 320 - Polar White (10'6") - 8'2" extension/58 lbs. $1,404.00
07830D01R F80s 370 - Polar White (12'2") - 8'2" extension/66 lbs. $1,491.00
07830E01R F80s 400* - Polar White (13'2") - 8'2" extension/71 lbs. $1,535.00
07832B01R F80s 320 - Titanium (10'6") - 8'2" extension/58 lbs. $1,438.00
07832D01R F80s 370 -Titanium (12'2") - 8'2" extension/66 lbs. $1,514.00
07832E01R F80s 400* - Titanium (13'2") - 8'2" extension/71 lbs. $1,602.00
07831B01R F80s 320 - Deep Black (10'6") - 8'2" extension/58 lbs. $1,438.00
07831D01R F80s 370 - Deep Black (12'2") - 8'2" extension/66 lbs. $1,514.00
07831E01R F80s 400* - Deep Black (13'2") - 8'2" extension/71 lbs. $1,602.00
Mentioned prices are suggested retail prices, Vat, Installation, Duties and Transport cost excluded.

* 1 Rafter included.

Standard fabric color: Royal Grey. Royal Blue offered in most sizes of White and Titanium awnings.

Data sheet

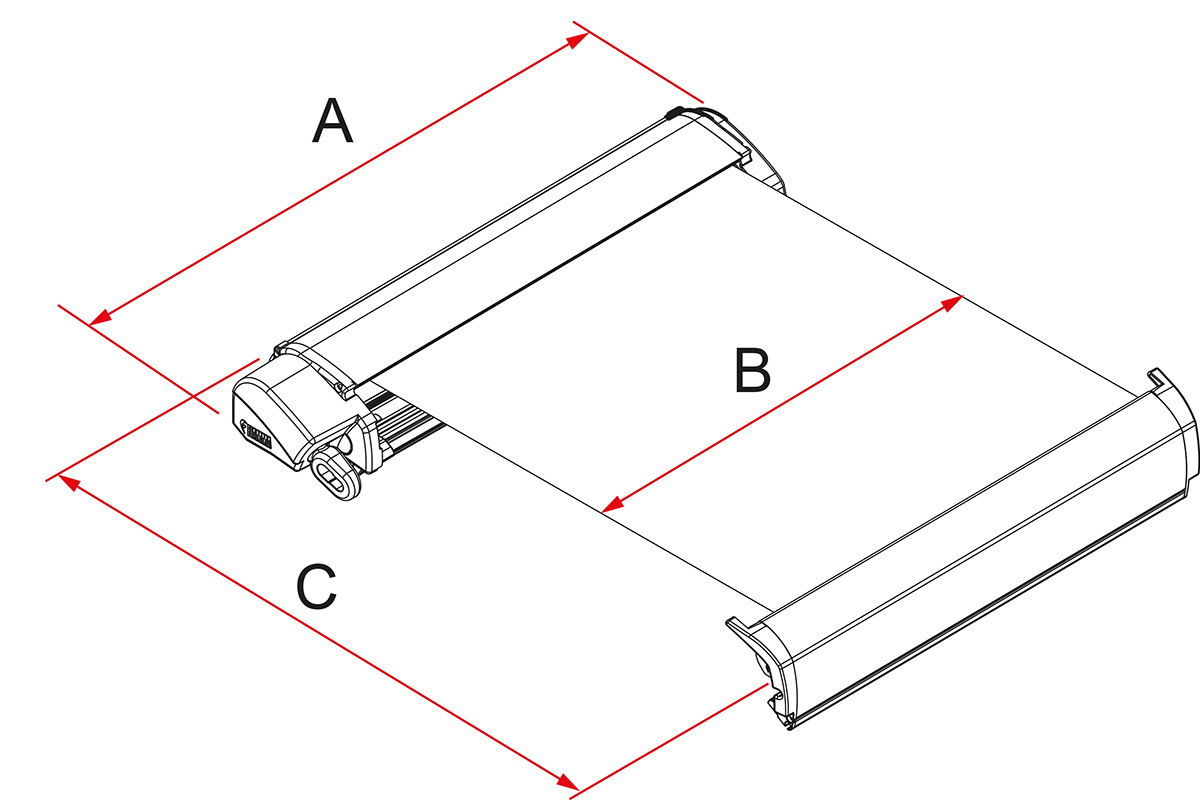

Description Awning length A Canopy length B Extension C Weight Shade surface
F80s 290 - Polar White (9'6") - 6'6" extension/55 lbs. 290 cm 278 cm 200 cm 27 kg 5,6 m2 print
F80s 320 - Polar White (10'6") - 8'2" extension/58 lbs. 320 cm 308 cm 250 cm 29 kg 7,7 m2 print
F80s 370 - Polar White (12'2") - 8'2" extension/66 lbs. 370 cm 358 cm 250 cm 32 kg 9,0 m2 print
F80s 400* - Polar White (13'2") - 8'2" extension/71 lbs. 400 cm 388 cm 250 cm 34 kg 9,7 m2 print
F80s 320 - Titanium (10'6") - 8'2" extension/58 lbs. 320 cm 308 cm 250 cm 29 kg 7,7 m2 print
F80s 370 -Titanium (12'2") - 8'2" extension/66 lbs. 370 cm 358 cm 250 cm 32 kg 9,0 m2 print
F80s 400* - Titanium (13'2") - 8'2" extension/71 lbs. 400 cm 388 cm 250 cm 34 kg 9,7 m2 print
F80s 320 - Deep Black (10'6") - 8'2" extension/58 lbs. 320 cm 308 cm 250 cm 29 kg 7,7 m2 print
F80s 370 - Deep Black (12'2") - 8'2" extension/66 lbs. 370 cm 358 cm 250 cm 32 kg 9,0 m2 print
F80s 400* - Deep Black (13'2") - 8'2" extension/71 lbs. 400 cm 388 cm 250 cm 34 kg 9,7 m2 print

* 1 Rafter included.

Standard fabric color: Royal Grey. Royal Blue offered in most sizes of White and Titanium awnings.
